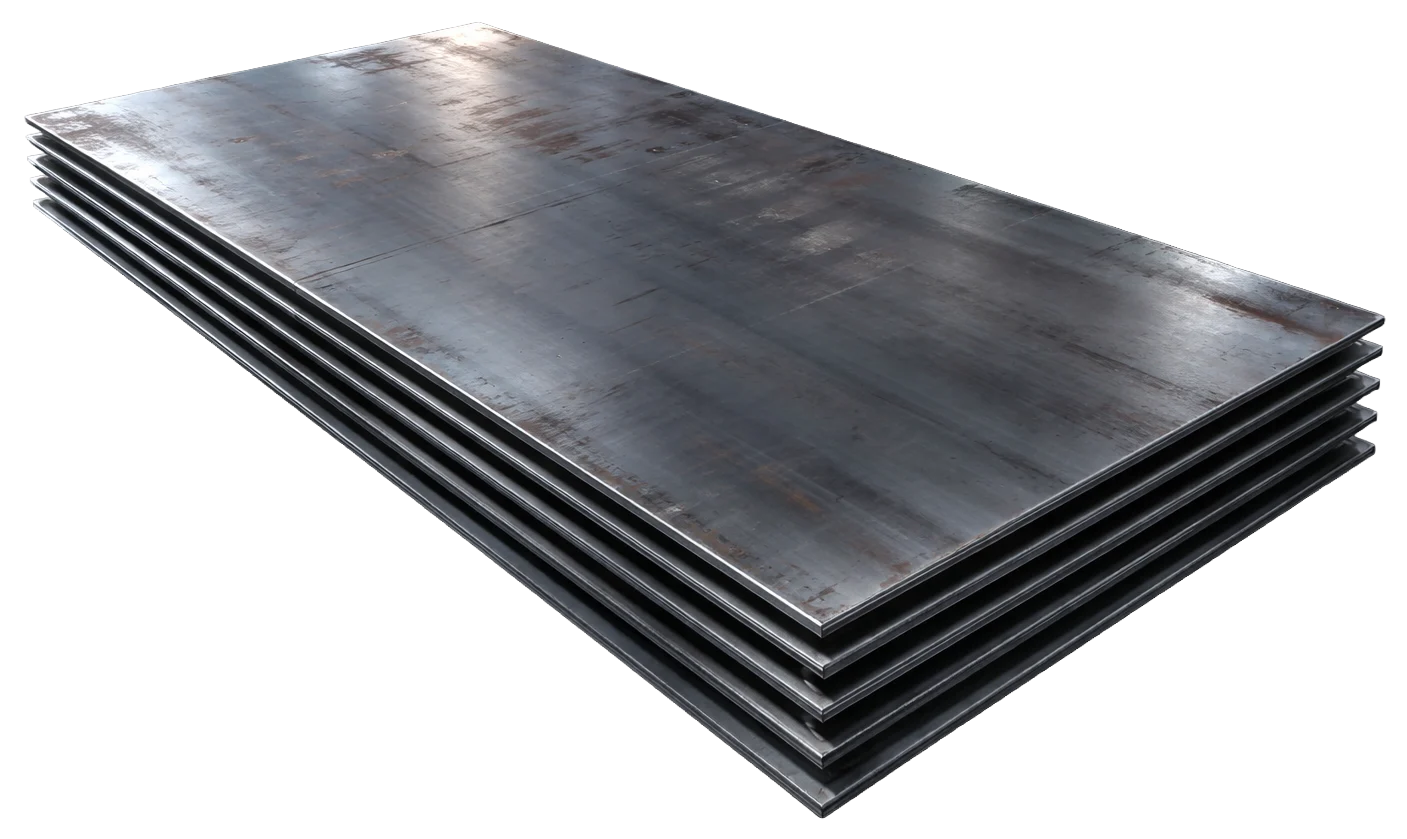

Road plates and temporary access systems provide a safe, stable surface wherever vehicles, plant, or machinery need to cross open ground, trenches, or excavations.

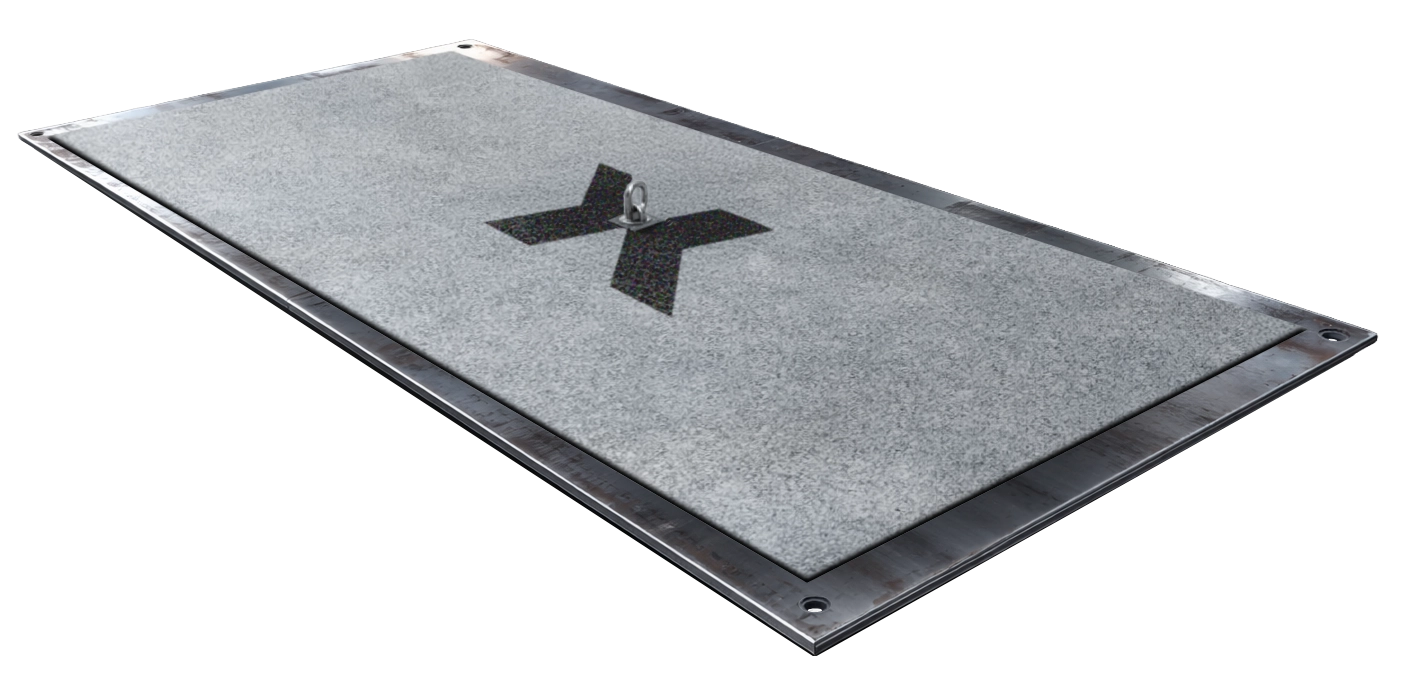

ShoreWorX road plates are durable and site-ready, designed to support temporary access, trench bridging, and ground protection across civil, utility, and infrastructure works.
With multiple sizes, thicknesses, and load options available, systems are selected to suit real site conditions — not assumptions.
They’re commonly used where open ground or excavations would otherwise restrict movement or introduce safety risks. Road plates and temporary access systems are best suited for:
ShoreWorX road plates are designed for mechanical placement and demanding site conditions.
Key features include:
Plates are selected based on what needs to cross them, not just size.
Typical applications
Road plates and temporary access systems are commonly used for:
Incorrect selection or placement can introduce risk — assessment matters.
Plate thickness and size must be matched to load and span. Final selection is confirmed prior to hire.
| Length | Height | Approx. weight |
|---|---|---|
| 2000mm | 2400mm | 940kg |
| 2400mm | 1200mm | 565kg |
| 2400mm | 1500mm | 740kg |
| 2400mm | 2400mm | 1128kg |
| 3000mm | 1200mm | 706kg |
| 3000mm | 1500mm | 882kg |
| 3000mm | 1800mm | 1058kg |
| 3000mm | 2400mm | 1412kg |
| 4000mm | 1200mm | 941kg |
| 4000mm | 1500mm | 1250kg |
| 4000mm | 1800mm | 1412kg |
| 4000mm | 2400mm | 1884kg |
| 6000mm | 2400mm | 2842kg |
| Length | Height | Total Unit Weight |
|---|---|---|
| 2000mm | 2400mm | 1204kg |
| 3000mm | 1500mm | 1128kg |
| 3000mm | 2400mm | 1808kg |
| 4000mm | 2400mm | 2410kg |
| 6000mm | 2400mm | 3616kg |
| Length | Height | Total Unit Weight |
|---|---|---|
| 3000mm | 1800mm | 2120kg |
| 4000mm | 1800mm | 2826kg |
Road plates are supplied for crane placement or mechanical lifting. Our team can help confirm the safest placement approach.
Engineering or temporary works input may be required where:
Engineering support is:
Where required, this is identified early.
If you know what you need, request a quote.
If you’re unsure, speak with our team and we’ll help confirm the safest road plate or access solution for your site.
